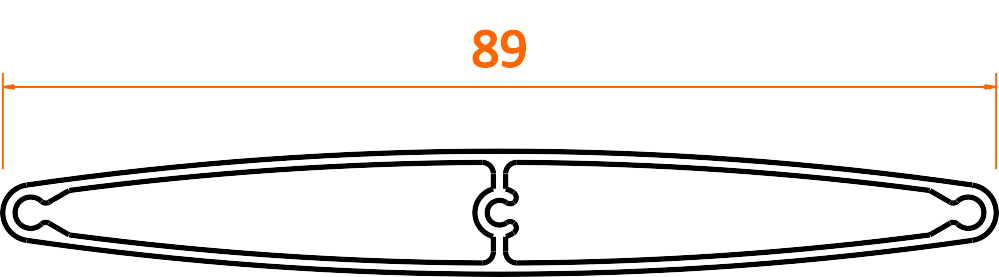

Aluminium Shutter Details

Aluminium shutter configuration guide provides basic information for ordering Vtite shutters through our store online. If you need more details or help please contact us.

Order online

Aluminium Shutter Frames

Z Aluminium Shutter Frame

L70 Aluminium Shutter Frame

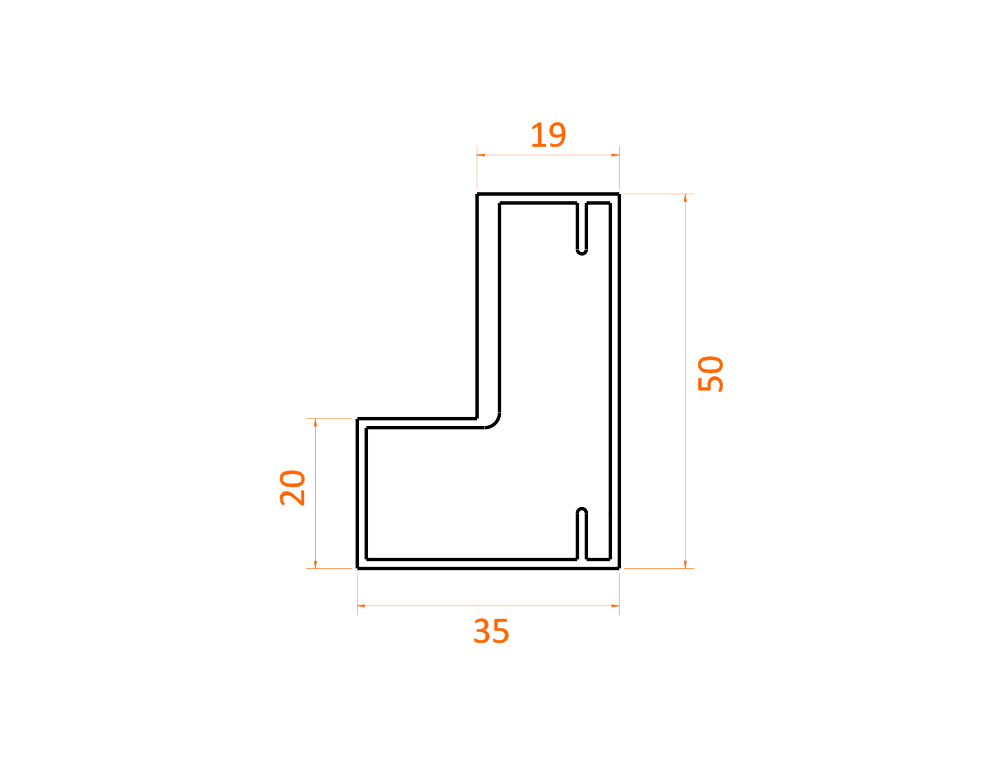

L50 Aluminium Shutter Frame

T Aluminium Shutter Mullion

Opening Configuration

Standard Mullion

L || R (Closed)

Movable Mullion

L | R (Closed)



L : shutter opens towards left, hinges are on the left hand side

R : shutter opens towards right, hinges are on the right hand side

|| : standard mullion

| : movable mullion

L || R (Open)

L | R (Open)

Uneven Split Measurements

Regardless, this is the first, second or other split in your shutter please provide a measurement from the left hand side of your window to the middle point of your shutter split.

Divider – Uneven Position

Dividers in shutters are for providing extra strength.

If during the ordering process you were asked to enter mid-rail position, it means your shutter is taller than 1500mm and you have chosen uneven vertical split.

Then please provide a measurement from the bottom of your window to the centre of mid-rail.

Our standard aluminium mid-rail size is 80mm.

In case your shutter is higher than 2500mm then your shutter will need at least two dividers. The rule for measuring the second divider is exactly the same like for the first one, please enter a measurement from the bottom of your window to the center of the mid-rail.
